Sykam Preparative HPLC

The Sykam S 700 preparative LC modules offer the user a wide range of possible system configurations. Whether you may need a simple isocratic chromatography system with a manual sample injection or a low pressure (binary, ternary or quaternary) mixing or a fully automated quaternary gradient system for multi-dimensional chromatography with column switching and reverse flow capabilities, the S 700 offers the user maximum flexibility to configure the system for virtually any preparative chromatographic application.

The following general features of Sykam chromatography systems are:

• Pressures upto 400 bar, Flows upto 1000ml/min
• Stainless Steel or biocompatible (PEEK) flow paths
• UV/Vis Detectors : 1-channel, 2-channel or PDA detector with integrated peak detection
• Combination of manual and automated injection module for large volume sample injection and a combined fraction collector/autosampler with a variable choice of tube and bottle sizes
• Automated single or multiple switching valve units for variable flow path configurations to achieve functions like reversed flow, solvent recycling, column switching, large volume sample uptake that meets any kind of multi-dimensional chromatography application
• Fraction Collectors configurable for a variety of tube sizes and bottles up to 500ml or container fraction collection for even large volumes
• Control and data handling software can simultaneously monitor up to 8 analog signals, offer dynamic visualization of the active flow path and has advanced peak sampling parameters for reliable and precise fraction collection

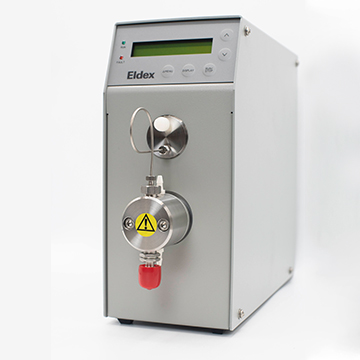

Eldex Precision High Pressure Pumps

Eldex ReciPro Optos Series high pressure metering pumps offer adjustable precision fluid delivery up to 80ml/min with local and remote controls based on stroke length with options for three different models in Hastelloy-C, 316SS, and PEEK material of the composition. Pistons are sapphire. Inlet and outlet valves are provided in sapphire/ruby and PEEK/ceramic for high temperature/pressure applications. We offer an integrated damper/pressure transducer for additional pulse dampening and pressure monitoring capability.

• Precise metering and dispense for scientific, engineering, and industrial applications
• High pressure capabilities
• Adjustable flow rate
• Long-duty cycle
• Highly engineered reciprocating piston design
• Precision metering from 0.002-80mL/min
• Microliter dispense mode, piston synchronization
• High pressure capabilities to 6000psi
• Serial connectivity, RS-232 (RJ-11) and analog control
• Corrosion resistant materials
• Integrated piston wash and optional pulse dampener
• Pressure monitoring capability
• 50+ year history of innovation
